« on: January 07, 2008, 11:40:43 am » |
|
In the much of the diagrams released, we have check this and it's correct.  Later we'll check also one for the alternatice points. |
|
|
|
|
|
sattommy
|
|
« Reply #1 on: January 08, 2008, 11:01:20 pm » |
|
Are you sure this is working cause i did this install and originals + backups are both not working. drive is trying to spin, led is flashing on both backups and originals, is this correct?
|
|
|
|
|
Infectus
Global Moderator
Hero Member
Posts: 1363
|
|
« Reply #2 on: January 09, 2008, 11:10:41 am » |
|
The points are correct.
|
|
|
|
|
|
Pekker
|
|
« Reply #3 on: January 10, 2008, 08:24:31 am » |
|
im waiting for my Argon today, and this is the diagram ill go with.
i really hope its ok. Any "miss-a-leggers" around here please confirm that the diagram is corrent.....not that i Doubt Mr Infectus...
|
|
|
|
|
|
DDAAXX
|
|
« Reply #4 on: January 10, 2008, 09:21:22 am » |
|
Hi,

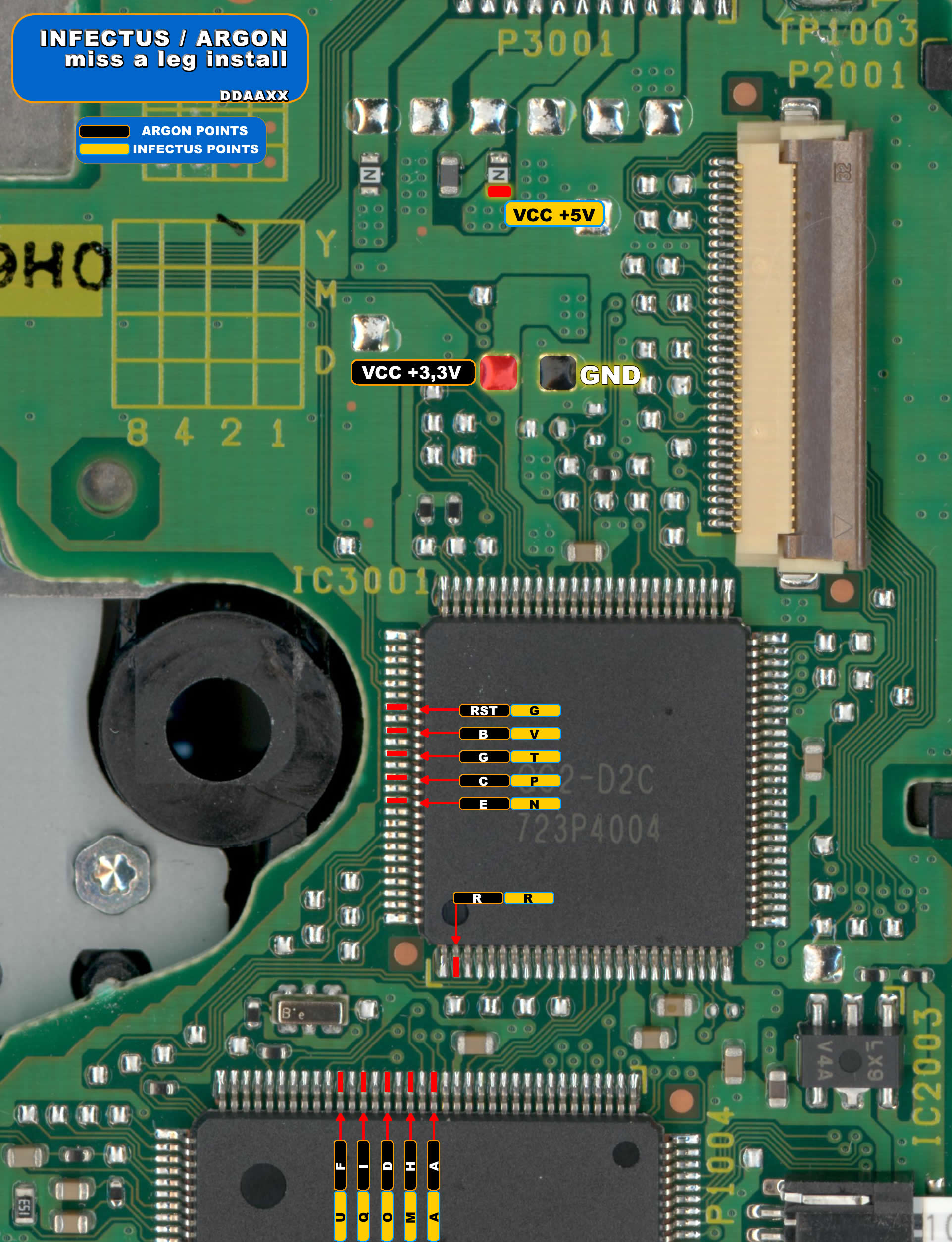

I created this image, Infectus had checked it and I used it for 2 installation that are OK... then I can confirm this is WORKING installation diagram
|
|
|
|
|
|
idog
|
|
« Reply #5 on: January 10, 2008, 12:43:21 pm » |
|
I'm probably extremely dense, but what leg is exactly missing on the D2C ? Can anyone post a 'legged' D2C and one that is missing one, so I can tell the difference ?
Does the 'regular' Argon alt install diagram also work for these 'missing leg' D2C's ?
Thanks
|
|
|
|
|
|
DDAAXX
|
|
« Reply #6 on: January 10, 2008, 01:10:43 pm » |
|
I think you are a little bit confused
The installation named "MISS A LEG" is not for a particular D2C chip.
This installation is the same as normal installation, but the good news is that you have not to solder all the wires one close to other one, but you solder 5 wires on the D2C chip and the other 5 wires on the other controller chip, so you minimize the risk to solder IC legs together.
I hope I have explained well in my bad english
|
|
|
|
|
|
idog
|
|
« Reply #7 on: January 10, 2008, 01:17:19 pm » |
|
Aha ! Perfectly clear now. My English is far from perfect as well, but I was really thinking there was something missing on a particular range of D2C's (and that's why the other chip was soldered to as well).
Thanks for this diagram then, was going for the alt install, but if this one works easy enough, I might stick to the top :-)
Thanks for clearing it up
|
|
|
|
|
|
delaware
|
|
« Reply #8 on: January 10, 2008, 06:35:47 pm » |
|
Hi i am from germany.
I received today my first Argon chips
the installation its very easy ( D2C key is hard )
but the most chips dont work so good in the WII PAL ( german ) consoles.
not one NTSC game is working. DO i have to solder a Jumper on the chip ?
or do i have to patch the chip with something ?
team infectus writes : Partial Regional Patch ( work on 80% or games )
i cant confirm that. from 10 Different games NTSC is not even one working.
from 25 Installed Argon chips in NEW WII CONSOLES = 9 are not working good.
They do accept the BACKUP only if you insert it a few Times into the Wii.
Some consoles work. and if you keep them running some minutes the freeze.
Are you Sure the ARGON CHIP is 100% ok ?
EDIT : I found in this Forum, that Argon cant play NTSC Games on Pal consoles.
This is very Bad. We have to remove the chip out of our Online shop then.
Its impossible to Sell the chip in Germany if he doenst boot NTSC games.
I hope infectus team is this going to fix in the NEXT furture.
because if not. we wound install any Argon chips and install only D2C KEYS !!!
|
|
|
|
« Last Edit: January 10, 2008, 08:59:07 pm by delaware »
|
Logged
|
|
|
|
|
TurboTronix
|
|
« Reply #9 on: January 16, 2008, 04:44:46 am » |
|
What about Alternate points for Infectus2?
|
|
|
|
|
|
TurboTronix
|
|
« Reply #10 on: January 16, 2008, 08:45:38 pm » |
|
Can this be used as GND?  |
|
|
|
|
|
LuNek
|
|
« Reply #11 on: January 21, 2008, 09:19:45 pm » |
|
So, the Argon Chip is installed with 12 Wires only?
I'm wondering because in all new is said, that it's a 13 wires modchip, but this diagramm includes 12 wires.
Is there also a 13 wires diagramm, I'm confused...
|
|
|
|
|
Arakon
Global Moderator
Sr. Member
Posts: 435
|
|
« Reply #12 on: January 21, 2008, 09:38:08 pm » |
|
I count 13 wires in the picture above.
|
No tech support by PM or email! Ask questions ONLY in the forums, so everyone can benefit from the solutions and discussions.
|
|
|
|
LuNek
|
|
« Reply #13 on: January 21, 2008, 09:43:56 pm » |
|
If you count the "black big one" near to the red "VCC +3,3V" then there are 13 wires.
Is that correct?
|
|
|
|
|
Arakon
Global Moderator
Sr. Member
Posts: 435
|
|
« Reply #14 on: January 21, 2008, 10:30:49 pm » |
|
yes, considering ground is a required connection and wired up.
|
No tech support by PM or email! Ask questions ONLY in the forums, so everyone can benefit from the solutions and discussions.
|
|
|
|
